# Junction Box Assembly

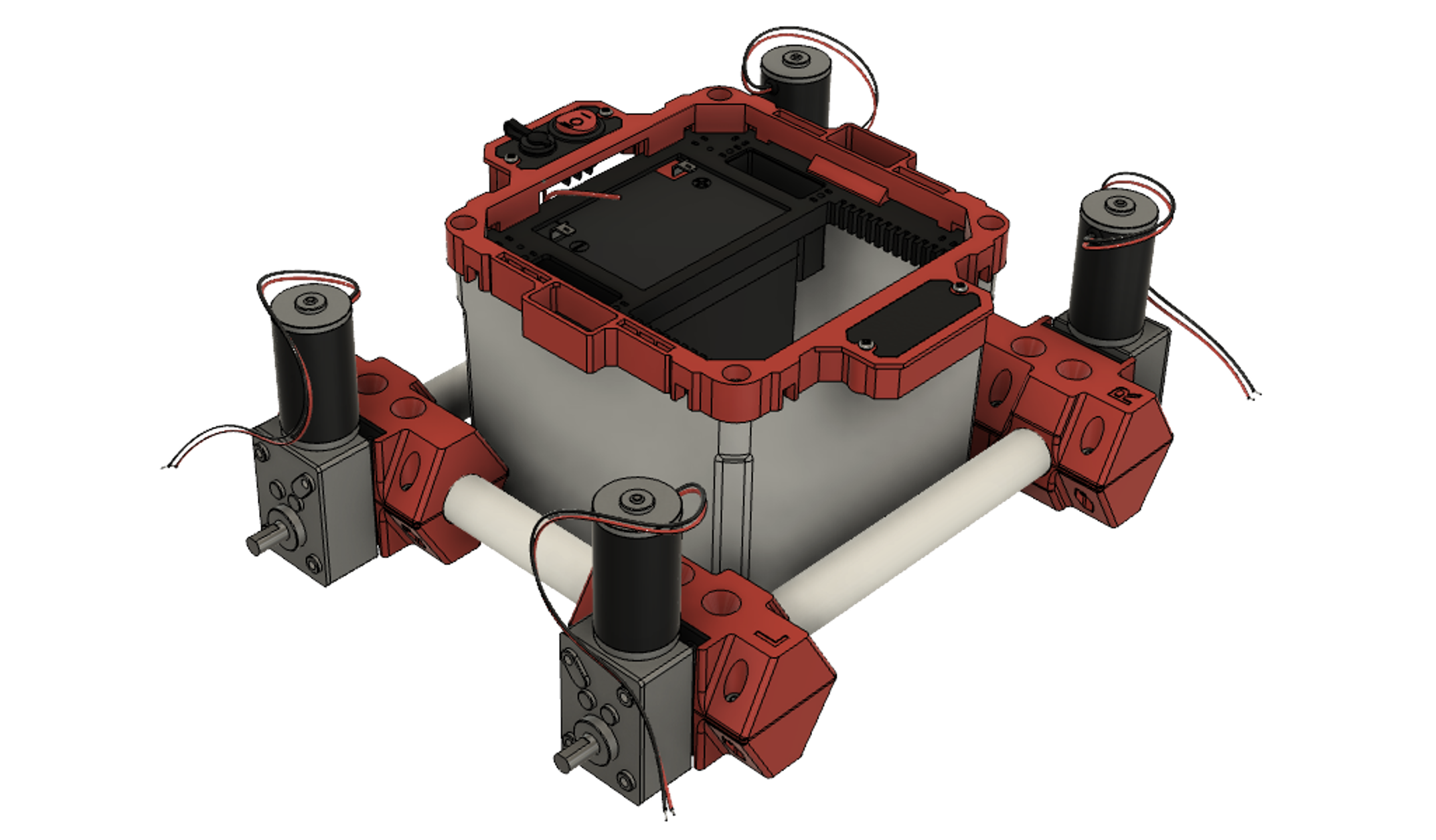

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2FsoedIxsGW1HwqgmlVEAF%2Fjunction%20box%20assembly%20preview.png?alt=media&#x26;token=d67e4290-1296-4c9d-9480-4776037f87f0" alt=""><figcaption><p>Completed Junction Box assembly</p></figcaption></figure>

### Parts Needed

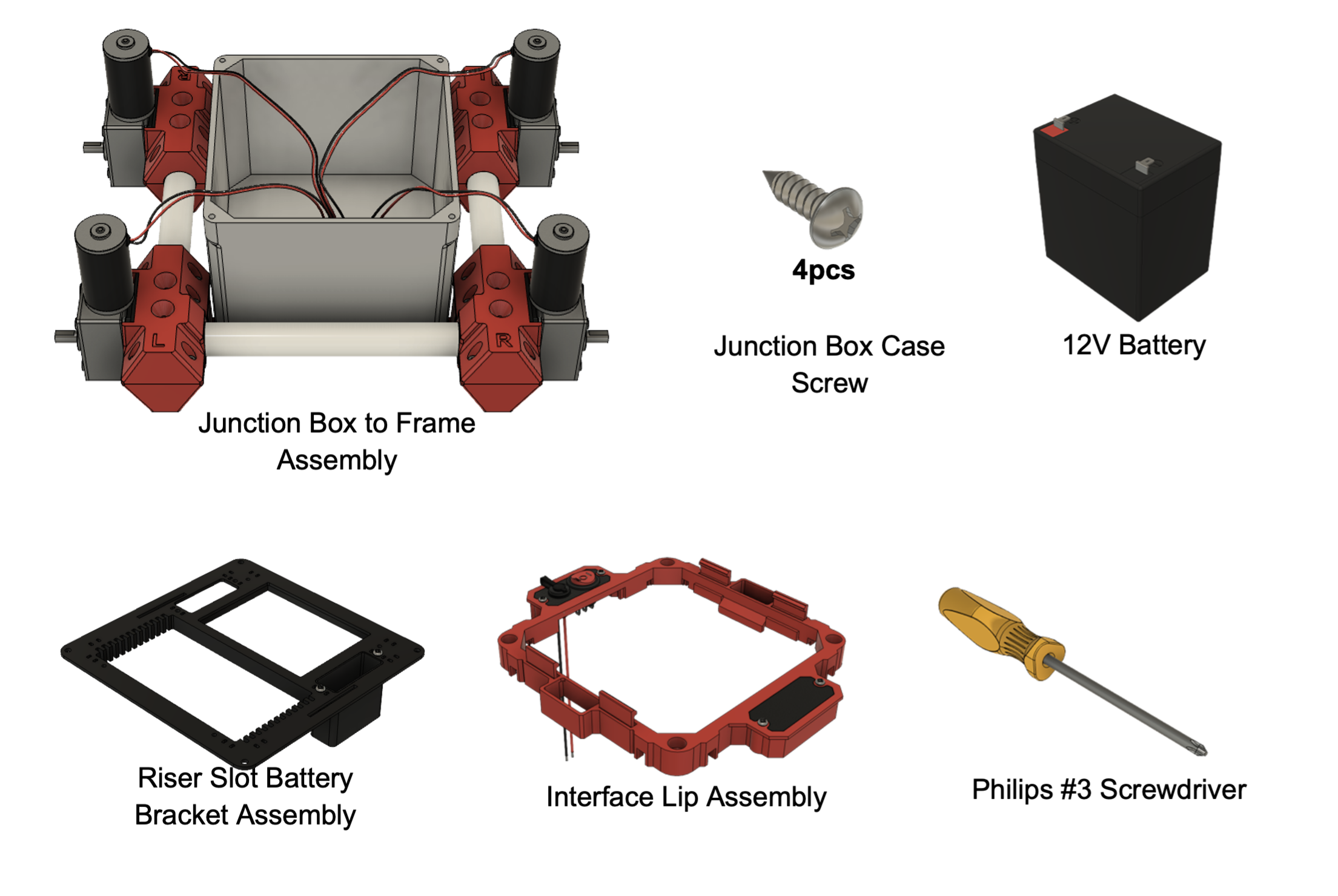

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2FYWLmqxouLK1jGO7jDN6t%2Fjunction%20box%20asm%20parts%20needed.png?alt=media&#x26;token=5bd0daeb-6f74-44fd-890a-035bc2ea6193" alt=""><figcaption></figcaption></figure>

### Instructions

1. Place the 12V Battery inside of the junction box with its terminals facing away from the edge of the junction box.

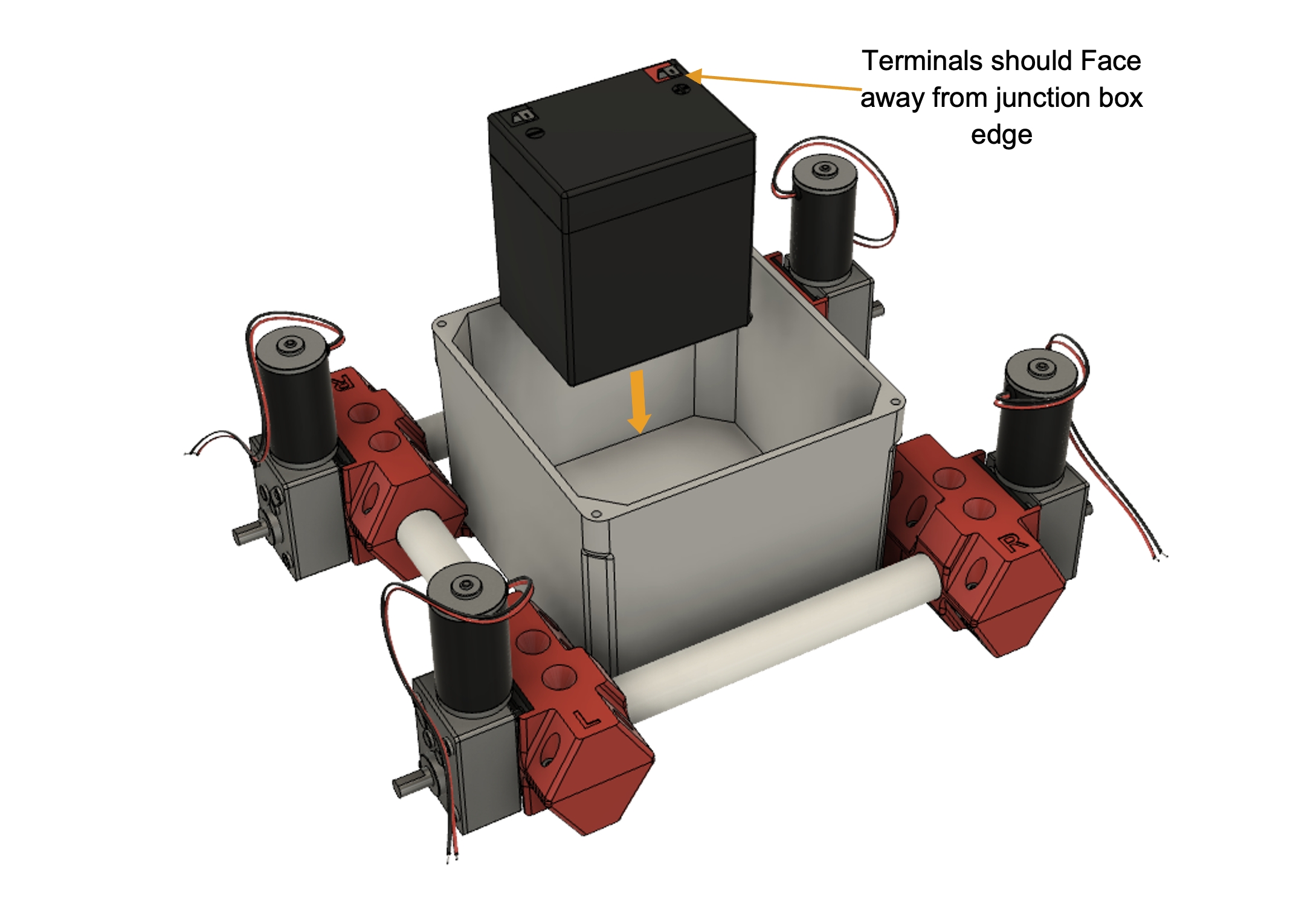

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2Fps8pzBsjyeJ2OjXRF3R0%2FInserting%20the%2012V%20battery.png?alt=media&#x26;token=2e02d292-4618-416c-9da0-b4112c1be4f4" alt=""><figcaption><p>Inserting the 12V battery.</p></figcaption></figure>

2. Insert the Riser Slot Battery Bracket Assembly on to the junction box with the smaller rectangle placed on top of the battery.

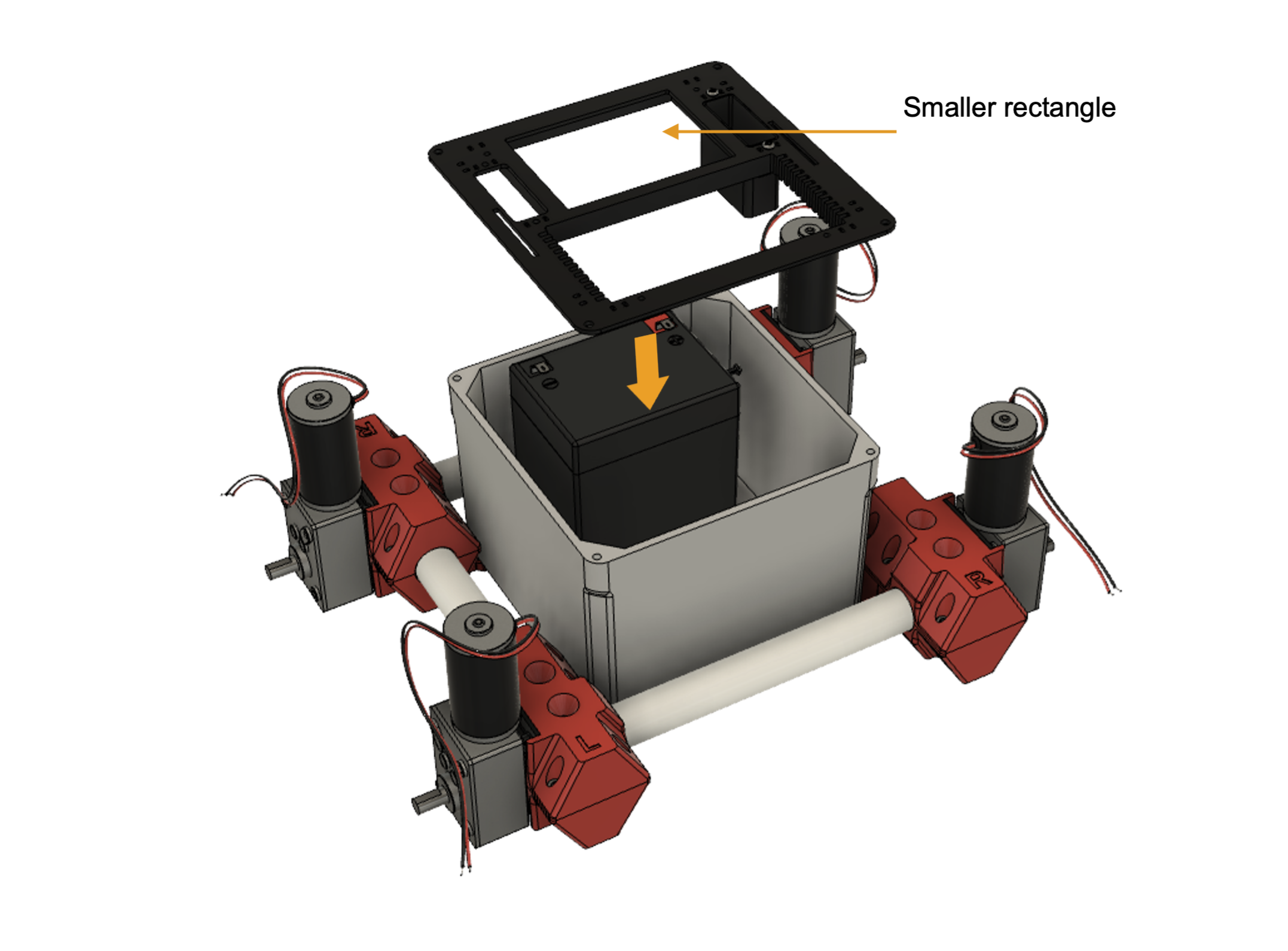

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2FgicqkXw1Ofi3RFHEXb8j%2FAttaching%20the%20Riser%20slot%20battery%20bracket%20assembly.png?alt=media&#x26;token=bae6660d-9611-49cc-94a2-cffdfce9167d" alt=""><figcaption><p>Attaching the Riser slot battery bracket assembly</p></figcaption></figure>

3. Place the Interface Lip Assembly on top of the Riser Slot Battery Bracket Assembly inside of the junction box with the power panel portion oriented closer to the battery.

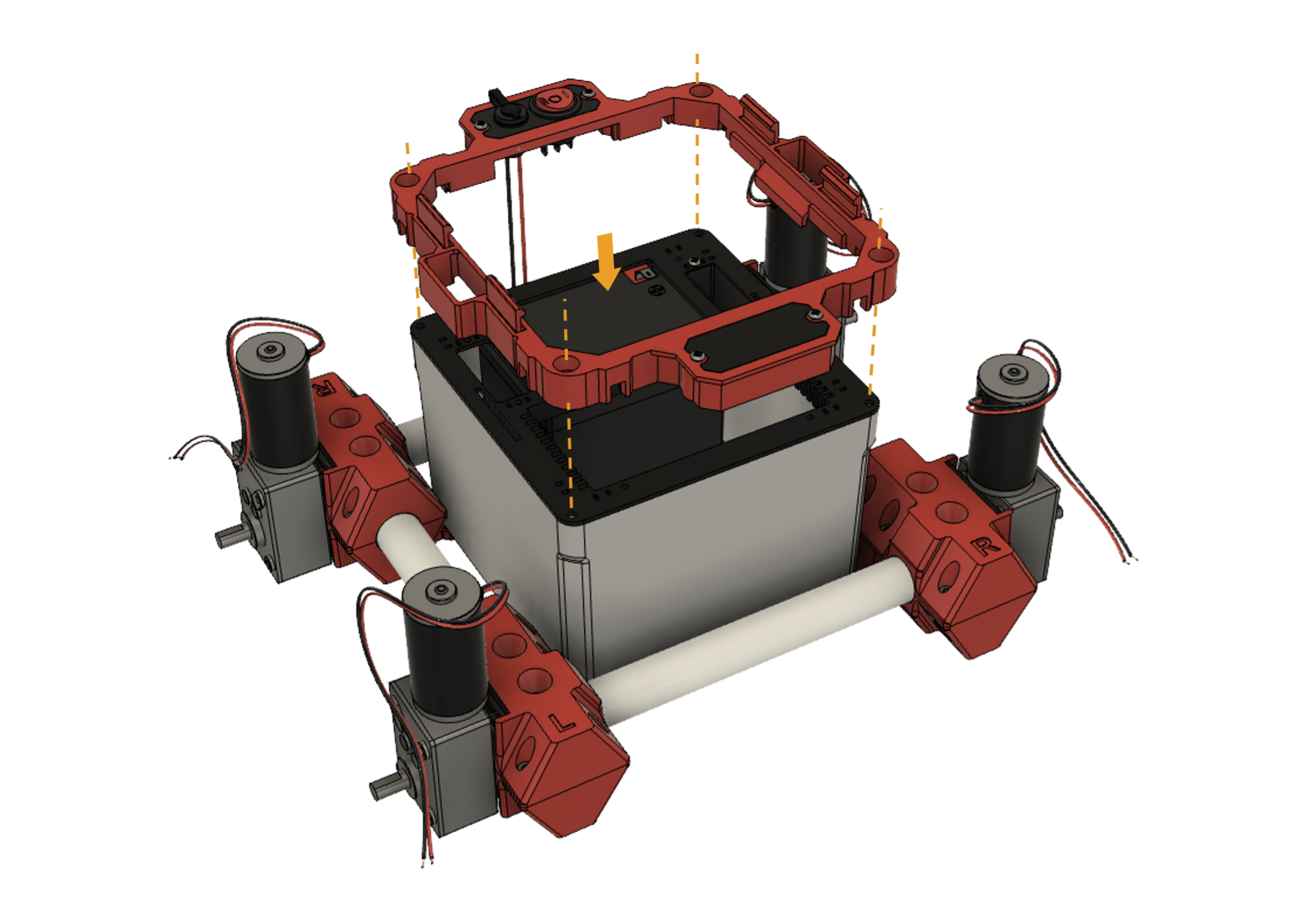

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2FjoKzisuQaJZ3BWxEGAYC%2FAttaching%20the%20Interface%20Lip%20assembly%20to%20the%20riser%20slot%20battery%20bracket%20assembly.png?alt=media&#x26;token=fc60e7f4-17c1-4697-bb0a-b5f15ba8bc71" alt=""><figcaption><p>Attaching the Interface Lip assembly to the riser slot battery bracket assembly</p></figcaption></figure>

4. Add a Junction Box Case screw to each of the holes in the four corners of the Interface Lip Assembly and tighten using the Philips # 3 screwdriver.

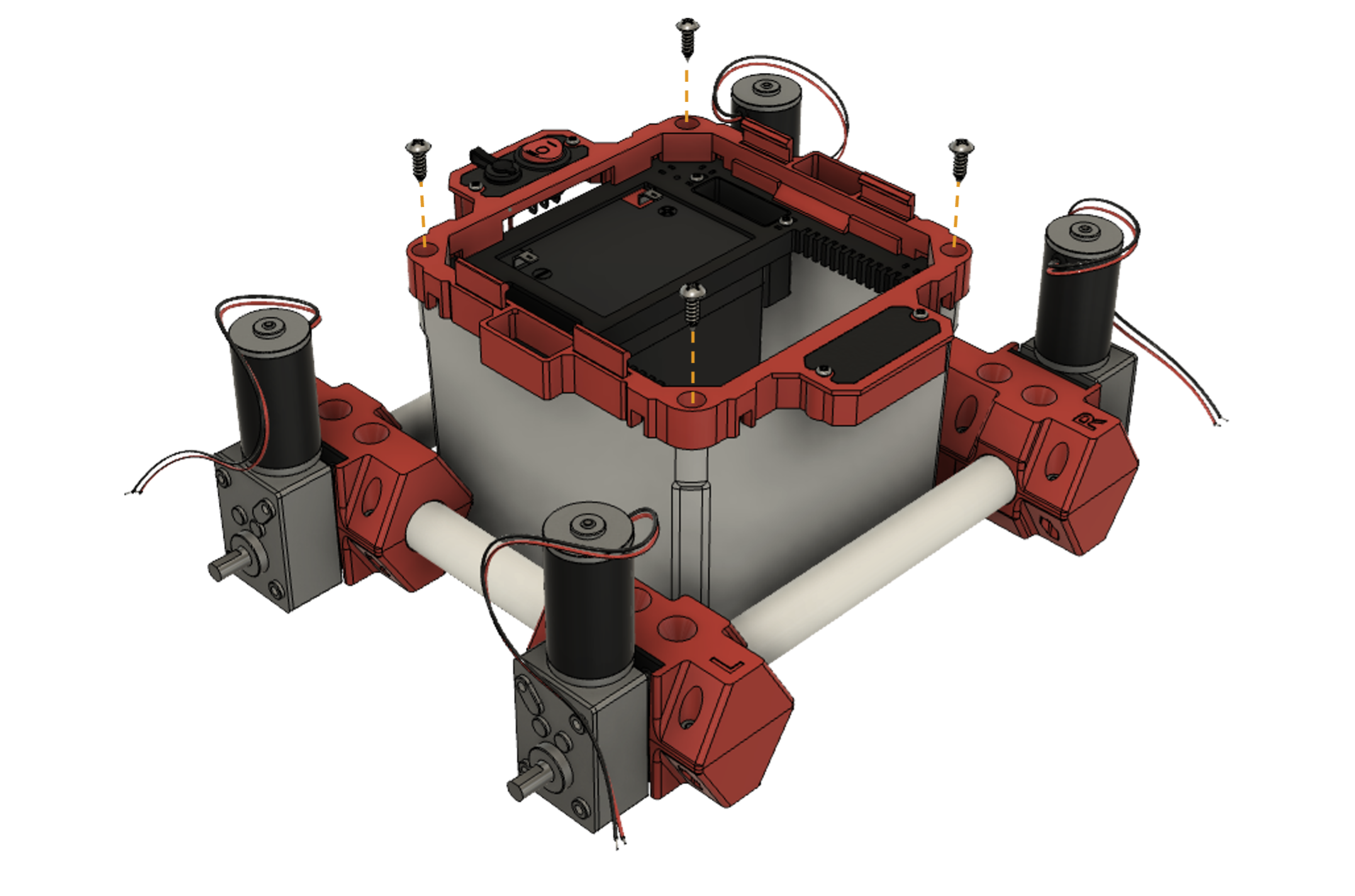

<figure><img src="https://1898365087-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TxAZqR44w6SMZdBc3q3%2Fuploads%2FQ8rv6ZudqPgl5Q8ZP0GI%2FSecuring%20the%20Interface-Lip%20assembly.png?alt=media&#x26;token=63d8e5e8-68a1-4835-9d3b-bc156ac18c88" alt=""><figcaption><p>Securing the Interface-Lip assembly</p></figcaption></figure>
